Dry Powder Mixer, V Shape/Square Cone/Two/Three Dimensional/Groove Blender/Ribbon/Screw /Trough/Cone Mixer for Pharmaceutical/Food/Chemical/Fertilizer/Pesticide

Basic Info

Model NO.	VHJ
Certification	CE, ISO, CCC, API
Application Area	Pharmaceutical
Layout Type	Horizontal
Mixing Drum Shape	Circular Groove
Additional Capabilities	Milling
Operating type	Continuous Operating
Condition	New
Cheap Price	Strong Technical Power
Professional Manufacturering	Experienced After Sale Service
Package	Wooden Case
Delivery	30days
Certificate	ISO14001 ISO9001
Applicaiton	Pharma, Food, Flavoring,Chemical,Fertilizer Mixer
Transport Package	Standard Wooden Case
Specification	EYH
Trademark	Yutong
Origin	China
HS Code	847982
Production Capacity	5-4000kg Per Batch

Product Description

Dry Powder mixer,V Shape/Square cone/Two/Three dimensional/Groove blender/Ribbon/Screw /Trough/Cone Mixer for Pharmaceutical/Food/Chemical/Fertilizer/Pesticide

Description

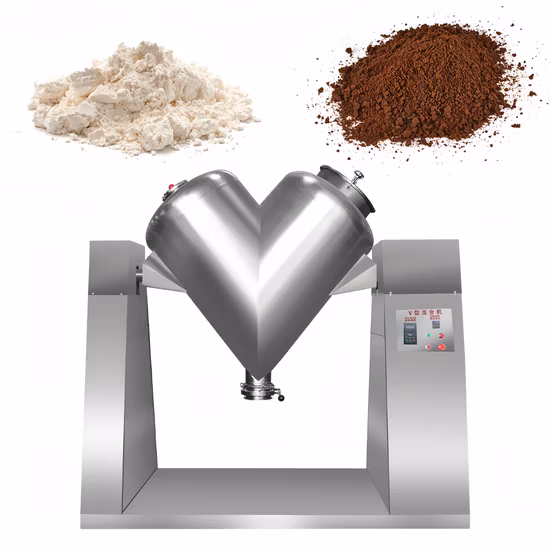

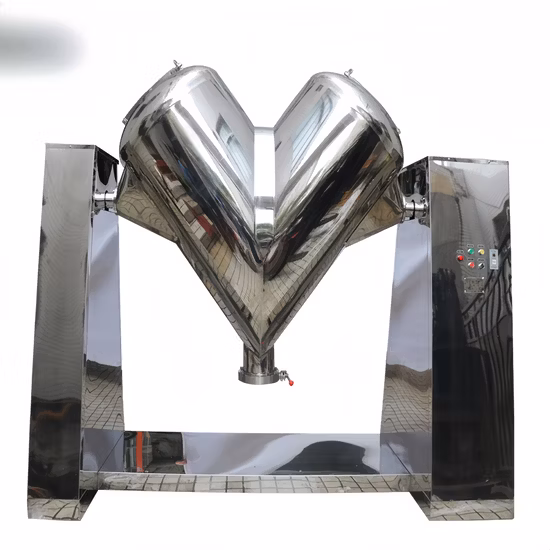

The mixing tube structure of V type mixer machine is unique. It is made up of stainless materials. Both inside and outside walls are polished. There is no internal transmission mechanism inside V type mixing equipment and it meets the GMP standard.

Application
V type mixer machine is widely used in pharmaceutical, chemical and food industries. It is suited for mixing more than two dry powder or granular materials.

Features
1. V type mixer machine features beautiful shape, uniform mixing and wide application.
2. In accordance with the user's requirements, we can supply compulsory mixer for the powder and lump materials.
3. Stirring device can be added into V type mixing equipment to break easy-caking materials and further strengthens the mixing effect.

Parameters of V Type Mixer Machine

Model & specification	VHJ-0.18	VHJ-0.3	VHJ-0.5	VHJ-1.0	VHJ-1.5	VHJ-2.0	VHJ-2.5	VHJ-3.0	VHJ-4.0	VHJ-5.0	VHJ-6
Productive capacity (kg/time)	72	120	200	400	600	800	1000	1200	1600	2000	2400
Model of vacuum pump	W2	W2	W2	W3	W3	W3	W3	W4	W4	W4	W4
Feeding time (min)	3-5	3-5	4-6	6-9	6-10	8-13	8-15	8-12	10-15	15-20	18-25
Mixing time (min)	4-8	6-10	6-10	6-10	6-10	6-10	6-10	8-12	8-12	8-12	8-12
Total volume (m3)	0.18	0.3	0.5	1.0	1.5	2.0	2.5	3.0	4.0	5.0	6.0
Stirring speed (r/min)	12	12	12	12	12	12	12	10	10	10	10
Power of motor (kw)	1.1	1.1	2.2	4	4	5	7.5	7.5	11	15	18.5
Rotating height (mm)	1580	1760	2400	2840	3010	3240	3680	3700	4350	4800	5300
Weight (kg)	280	320	550	950	1020	1600	2040	2300	2800	3250	3850

Note: Basically, loading factor is 0.4 - 0.6. In the above table, production capacity is calculated according to loading factor 0.5 and material density 0.8.
Yutong Patent

CERTIFICATE

Package:wooden case

service:pre-sale service
Invite your company personnel to our company, communicate with each other on technical requirements,to understand correctly about material features and other specific requirements, comprehensive technical strength and long-term experience,design production meet the requirements, more sophisticated equipment.
sale service
We responsible is to debug the equirement accord with your company requirements of various technical data,operators will go to your company tell u equipment features and operation key points, so that the equipment running in the best condition.
after-sale service
we provide installation, debugging, maintenance, training and other services; Provide relevant technical data, equipment, software and related GMP certification materials;Set up after-sales service hotline, and arrange personnel to visit customers every yearto know more customer needs,like customer operation problems in the process of production equipment,our company will go scene and help u 24 hours (72 hours in other country)
quality promise
Our company promises strictly operate the ISO9001 quality system certification standards and pharmaceutical equipment GMP audit requirements,promise we provide new equipment.Advanced technology,good quality.Equipment operation safe reliable, affordable, easy to maintain.Equipment warranty period is one year,all the parts for the equipment choose well-known brand.During the warranty when equipment have problem in quality like equipment failure and damage,the company for free maintenance or replacement. (except belongs to the buyer's error)

We look forward to cooperating with partners from all the world to build win-win
cooperation relationship in long term. Welcome for your visit and instigation!
