Rotary Vibrating Screen Industrial Ultrasonic Vibrating Screen Vibrating Sieving Machine Vibrating Sifter

Basic Info

Model NO.	CQ-600
Warranty	1 Year
Customized	Customized
Condition	New
After-sales Service	1 Year
Product Name	Vibration Screen
Voltage	220V/380V
Weight	50kg
Layer(S)	1-3
Screen Mesh	600mm
Screen Area	0.246m2
Screen Specification	2-500mesh
Feeding Size	<10mm
Power	0.55kw
Speed Range	1450r/Min
Material	SUS 304 Stainless Steel
Transport Package	Wooden Case
Origin	Henan, China

Product Description

rotary vibrating screen industrial ultrasonic vibrating screen vibrating sieving machine vibrating sifterProduct Description

Product Descriprion:

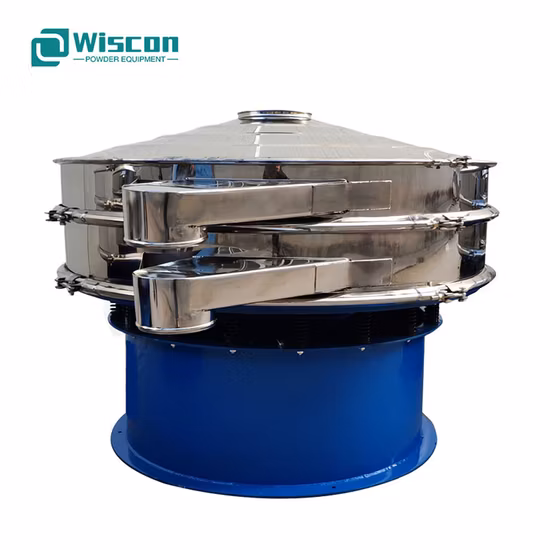

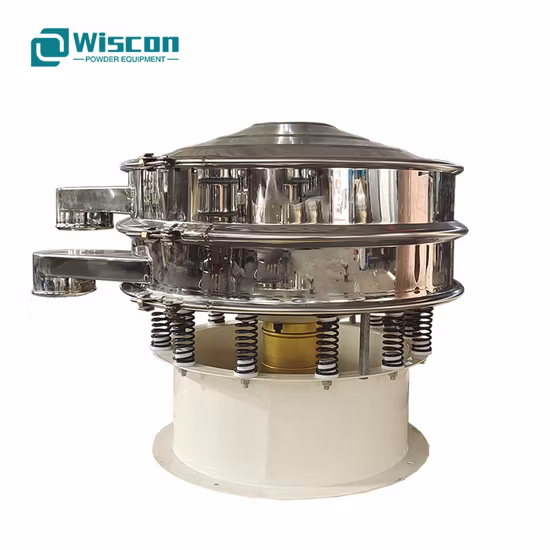

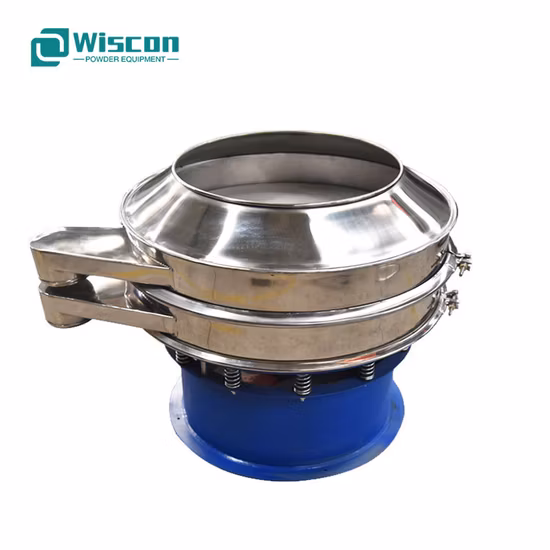

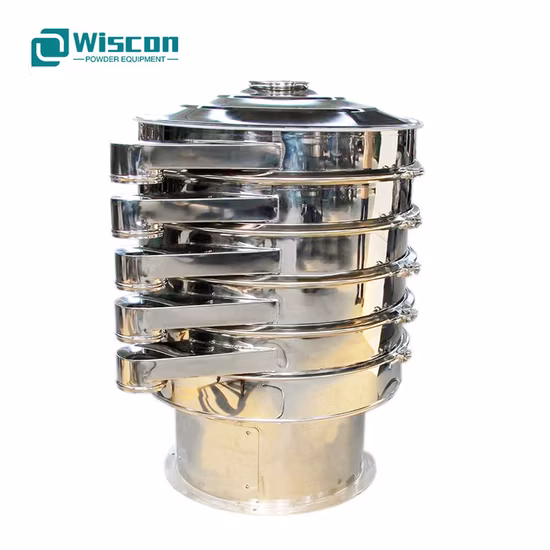

Rotary Vibration Sieve is a high-precision fine powder screening machine with low noise and high efficiency. It takes 3-5 minutes to change the screen quickly. It has a fully closed structure. It is suitable for screening and filtering particles, powder, mucus and other materials. The rotary Vibration Sieve uses a vertical motor as the excitation source, and eccentric weights are installed at the upper and lower ends of the motor to transform the rotary motion of the motor into a horizontal, vertical and inclined three-dimensional motion, and then transfer this motion to the screen surface. By adjusting the phase angles at the upper and lower ends, the motion trajectory of the material on the screen surface can be changed.

Main Features:

1. Fully enclosed structure, no dust flying, ensuring the cleanness of the production environment.2. It is easy to change the screen, easy to clean, simple to operate and easy to use.3. Continuous operation.4. Small volume, space saving and convenient movement.

Model	Diameter(mm)	Layers	Effective Diameter(mm)	Mesh size(mm)	Feeding Size(mm)	Power(kw)
CQ-600	600	1-3	φ560	2-500	∠φ10	0.55
CQ-800	800	1-3	φ760	2-500	∠φ15	0.55
CQ-1000	1000	1-3	φ930	2-500	∠φ20	0.75
CQ-1200	1200	1-3	φ1130	2-500	∠φ30	1.1
CQ-1500	1500	1-3	φ1430	2-500	∠φ30	1.5

rotary vibrating screen industrial ultrasonic vibrating screen vibrating sieving machine vibrating sifterDetail

rotary vibrating screen industrial ultrasonic vibrating screen vibrating sieving machine vibrating sifterPackaging & Shipping

Fixed in Standard export Plywood carton. Machine surface protection, plastic fastening.Manufacturer logo printed on the outside of package. 30% deposit when placing order, 70% balance paid before shipment. 7 days after receipt of balance payment.

If you need more technical information about this machine, please contact me...
