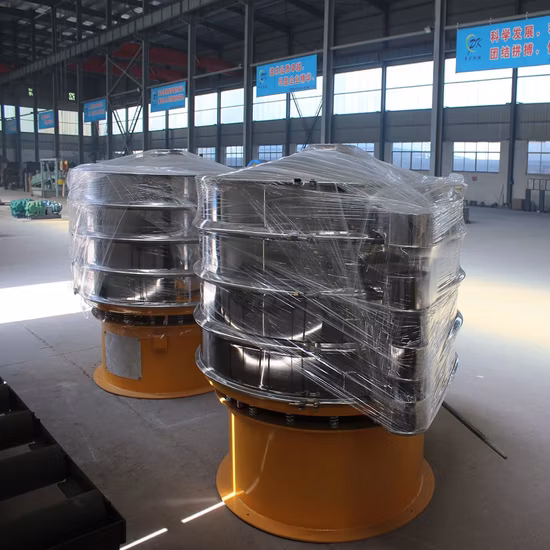

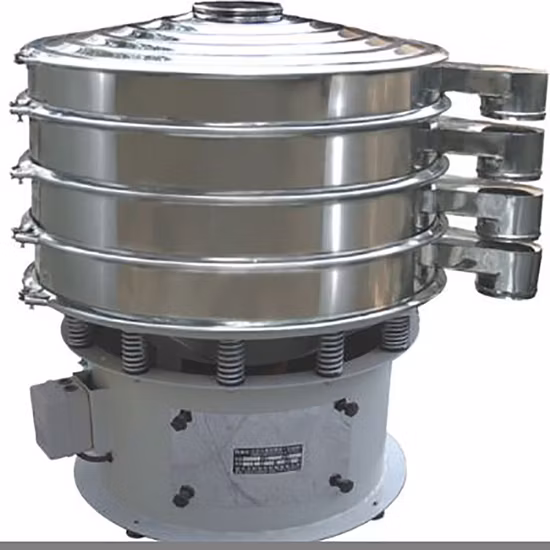

Rotary Vibrating Sifter for Glass Powder

Basic Info

Model NO.	CZS
Type	Circular
Function	Thin Oil Shaker, High Frequency Vibrating Screen
Transmission Structure	Vibrating Screen
Usage	Mine Shaker, Experiments Shaker, Lightweight Fine Shaker
Works	Rotary Vane Shaker
Object	Many Industries, Covering Food, Chemical, Ceramic,
Shaft Number	Single
Running Track	Circular Vibrating Screen
Supporting Device	Rubber Spring
Warranty	1 Year
Customized	Customized
Condition	New
Model	Φczs400/600/800/1000/1200/1500/1800/2000
Screening Area	0.09/0.22/0.4/0.63/0.95/1.5m2
Frequency	1500rpm
Amplitude	1~2mm
Capacity	0.3~4.5m3/H
Power	0.18/0.25/0.55/0.75/1.1/1.5kw
No. of Layers	1-5
Material	Carbon Steel or Stainless Steel
Feeding Size	Smaller Than 30mm
Screen Diameter	400-2000mm
Transport Package	Standard Shipping Package
Trademark	YUANBEN
Origin	Henan, China (Mainland)
HS Code	8474100000
Production Capacity	500 Sets/Month

Product Description

Henan Yuanben Intelligent Technology (hereinafter referred to as Yuanben) is a specialized manufacturer that focuses on designing and manufacturing intelligent vibrating screening equipment. The company is committed to the processing, production, research& development and design of new intelligent vibrating screen. Yuanben is located in the national center city, Zhengzhou, it owns more than 20 technical engineers, and cooperates deeply all along with Henan Pingyuan Mining Machinery which has years of dedicated production experience, in addition, Yuanben has its own processing research and development base.
''Build industry with wisdom, create value with wisdom'', under the promotion of "Internet+" concept, Yuanben will deeply integrate ''intelligence + digitalization'' to build an intelligent workshop and realize the intelligence of overall process. While strengthening its own equipment automation intelligence, driving the transformation and upgrading of screening industry, the industry intelligent development should be also jointly promoted.
Get a price at once!ultrasonic vibrator sieve

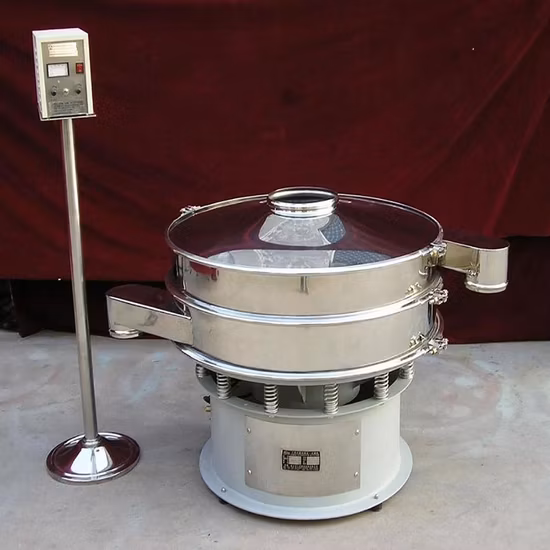

Introduction Ultrasonic vibrating screen is the rotary vibration screen installed ultrasonic system and it is a high-precision ultra fine powder screening machine. It is consist of upper cover, screen frame with ultrasonic, base, vertical motor and ultrasonic generator etc. Diameter can be ranged from 400mm to 2000mm and with single or multiple screening layers.Ultrasonic vibration screen solve a series of screening problems, including adsorption, reunite, static, precision, density, light weight and other screening problems, which makes the separation of ultra fine powder easier.

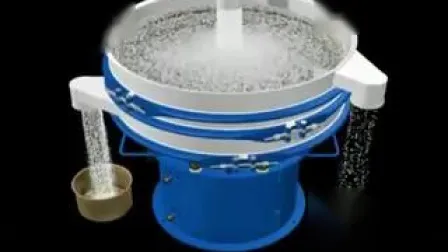

Get a price at once!Working PrincipleUltrasonic vibrating screen can convert the 220V,50HZ or 110V,60HZ electric energy to 18KHZ high frequency electric energy, then, convert it to mechanical vibration of 18KHZ through ultrasonic generator and transmit to the screen mesh. The super-fine powder on the screen mesh will get greater ultrasonic acceleration and avoid a series of screen mesh blocking factors.Advantages and Features 1.Prolonged mesh life by reducing screen overload and frequency of mesh cleaning.2.More efficient sieving capacities which could ensure the quality of final product. 3.Screen surface could achieve maximum utilization, maximizing the productivity. 4.Easy to install and maintain.5.More efficient reducing the blockages for mesh.6.Without pollution to the material which produced by the bouncing ball.7. Resolve adhesive material and reduce the oversize screening material.8. One intelligent ultrasonic generator can applied for single or multiple layers. Technical Parameters

Model	CZS-400	CZS-600	CZS-800	CZS-1000	CZS-1200	CZS-1500
Nominal Diameter(mm)	400	600	800	1000	1200	1500
Screen Diameter (mm)	340	530	720	900	1100	1400
Screen Surface Area (m2)	0.09	0.22	0.4	0.63	0.95	1.5
Feeding Size (mm)	<10	<10	<20	<20	<20	<20
Specification	2-325
No. of Layers	1-3
Frequency (rpm)	1500	1500	1500	1500	1500	1500
Power (kW)	0.18	0.25	0.55	0.75	1.1	1.5

Selection Conditions

♦Material to be processed: _____	♦Max. granule size of the feeding material: _____mm
♦Handling capacity (Ps. It means the total	♦Layer number: ______
material capacity feeding from the inlet): _____t/h	♦Mesh size of each layer: _____mm
♦Bulk Density: _____t/m3	♦Particle distribution percentage:____________
♦Material temperature: _____ºC;	(please check the following example to help you
♦water content:____%	understand it.Supposing the layer number is 2
♦Material is corrosive or not: ____ (Ps. Yes or No)	and the aperture size of each layer is 10mm and 5mm,
♦Material is sticky or not: ____ (Ps. Yes or No)	then you will get 3 kinds of products: X,Y and Z.
♦Working environment is indoor or outdoor: _____	X≥10mm; 5mm≤ Y < 10mm; Z<5mm.
♦Working environment temperature: ______ ºC	We want to confirm the following information:
♦Upstream equipment (Ps. It means what kind of	1)The percentage of X in the whole material:_____%;
equipment is used to feed the material): _____	2)The percentage of Y in the whole material:_____%;
♦Downstream equipment (Ps. It means what kind of	3)The percentage of Z in the whole material:_____%;)
equipment is used to discharge the material): _____	♦Working power supply: _____V ______HZ
